Process-to-Process Delivery: UDP and TCP

Data Deliveries Types

Process-To-Process Delivery

Types

A. TCP : Transmission Control Protocol

B. UDP : User Datagram Protocol

C. SCTP : Stream Control Transmission Protocol

  TCP Working

 Code

Communicate Between Client & Server Program , when both are running on Same Machine through Transmission Control Protocol

// This code is for Client save it as cli.java

import java.io.IOException;

import java.io.PrintStream;

import java.net.Socket;

import java.net.UnknownHostException;

import java.util.Scanner;

public class cli{

public static void main(String args[]) throws UnknownHostException, IOException

 {

  int number,temp;

 Scanner sc =new Scanner(System.in);

 Socket s =new Socket("127.0.0.1",1344);// for ip address & port number

 Scanner sc1= new Scanner(s.getInputStream());//get input stream



  System.out.println("Enter any number");

  number= sc.nextInt();

  PrintStream P= new PrintStream(s.getOutputStream());

  P.println(number);

  temp=sc1.nextInt(); // creating temporary variable in order to accepting result from the server

  System.out.println(temp);



 }

}

// This code is for Server save it as ser.java

import java.io.IOException;

import java.io.PrintStream;

import java.net.ServerSocket;

import java.net.Socket;

import java.util.Scanner;



public class ser {

 public static void main(String args[]) throws IOException

 {

  int number,temp;

  ServerSocket s1=new ServerSocket(1344);// specified same port number as specified in the client

  Socket ss=s1.accept(); // for accept incoming request from the client.

  Scanner sc=new Scanner(ss.getInputStream()); // accept some data from the client.

  number=sc.nextInt();



  temp=number*2; // result saving on the operation and pass it.



  PrintStream p=new PrintStream(ss.getOutputStream());

  p.println(temp);

 }

}

//*OutputScreen*/

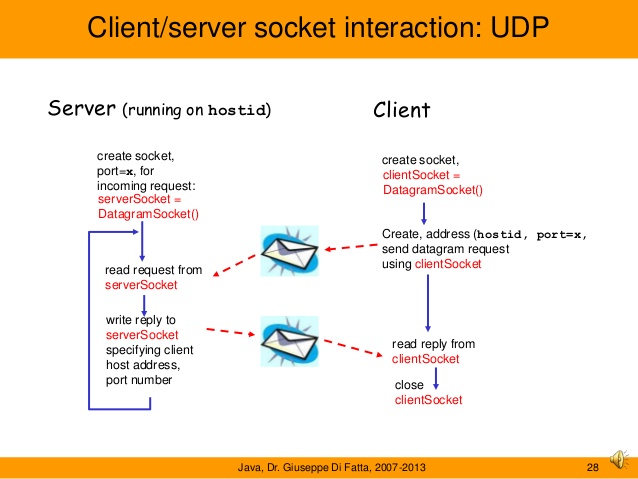

 UDP Working

Code

Communicate Between Client & Server , when both are running on Same Machine through User DataGram Protocol (UDP)

// this is code for Server

class UDPServer {

  public static void main(String args[]) throws Exception

    {

      DatagramSocket serverSocket = new DatagramSocket(9876);

      byte[] receiveData = new byte[1024];

      byte[] sendData  = new byte[1024];

      while(true)

        {

          System.out.println("SERVER is waiting to receive a string");

          DatagramPacket receivePacket = new DatagramPacket(receiveData, receiveData.length);

          serverSocket.receive(receivePacket);

          String sentence = new String(receivePacket.getData());

          InetAddress IPAddress = receivePacket.getAddress();

          int port = receivePacket.getPort();

          String capitalizedSentence = sentence.toUpperCase();

          sendData = capitalizedSentence.getBytes();

          DatagramPacket sendPacket = new DatagramPacket(sendData, sendData.length, IPAddress, port);

          serverSocket.send(sendPacket);

          System.out.println("SERVER has converted a string from lowercase to uppercase");

        }

      }

// this is code for Client

import java.io.*;

import java.net.*;

// this program wil send a string to server & server in return send the same string in capital

class UDPClient {

    public static void main(String args[]) throws Exception

    {

      BufferedReader inFromUser =

        new BufferedReader(new InputStreamReader(System.in));

      DatagramSocket clientSocket = new DatagramSocket();

      InetAddress IPAddress = InetAddress.getByName("localhost");

      byte[] sendData = new byte[1024];

      byte[] receiveData = new byte[1024];

      String sentence = inFromUser.readLine();

      sendData = sentence.getBytes();

DatagramPacket sendPacket = new DatagramPacket(sendData, sendData.length, IPAddress, 9876);

      clientSocket.send(sendPacket);

      DatagramPacket receivePacket = new DatagramPacket(receiveData, receiveData.length);

      clientSocket.receive(receivePacket);

      String modifiedSentence =  new String(receivePacket.getData());

      System.out.println("FROM SERVER:" + modifiedSentence);

      clientSocket.close();

      }

}

//*OutputScreen*/
